Φ10mm Brass Material Lock Cable Grippers Nickel Finishing With
Security Cap
This Lock cable gripper is made from nickel plated brass and
features a safety lock to provide extra security.
They can be repositioned without damaging the cable and no tools
are necessary.
Just unscrew the head(Security Cap), push and slide it.
One hand is sufficient : the grippers are installed wholly without
tools and are infinitely adjustable.

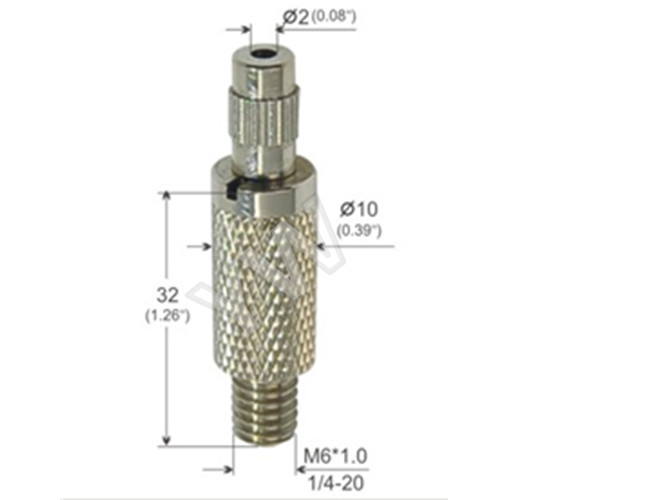

This cable gripper is M6*1 external threaded,
and best suited to indoor applications with small diameter wires
1.0~1.5mm.
Other sizes and styles can be supplied as well,
Contact us for your requirements,or send us your drawing for OEM.
Description
| 1. Material | Brass |
| 2. Size | Φ10*32mm / Customized |
| 3. For use with Cable | Ø1.0~Ø1.5mm |
| 4. Finishing Color | Chrome / Black/ Customized |
5. Application | With our many Lock Cable Gripper styles you can hang anything: Drop Ceilings,Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames and more.
|
| 6. Safe Working Load | 30KG,depends on the cable diamter work with |
| 7. Cable Gripper Design | Within each cable gripper is a plunger that a cable slides through. There are three balls that surround the outside diameter of the
cable as it passes through the gripper. When weight is applied to the
gripper when mounted, the tension forces the balls to grab the cable in a
pinching movement. In normal operation the more the tension, the more the gripping.
Some grippers come with a safety nut that locks the movement in
both directions eliminating the potential for a release if the
plunger is accidentally depressed by an end user. |
How It Works
Aircraft Cable Grippers are sophisticated in design but simple to
use:
Insert the cable into the plunger and slide the gripper to the
desired position.
Where it stops it locks.To re-adjust, simply depress the plunger
with your fingertip
and move the gripper to a new position. Release the plunger to
lock.
The 3--ball gripping mechanism is spring-loaded and allows the
gripper to move
freely up the cable. It cannot move down unless the plunger is
depressed.
While there is any weight at all on the gripper, the plunger cannot
be depressed.
An optional “safety nut” or “safety cap” can be added to completely
lock the mechanism
in both directions. The greater the weight, the stronger it grips.
If you have a project that involves unusually sloped, curved or
high ceilings, our aircraft cable gripper system may be the
solution for you. It is affordable, flexible and easy to install.
To find out more about this more solutions for your hanging system,
Please feel free to contact our sales team.
FAQ
Lead Time:
Lead times will vary depending on the items and quantities on
order.
Normal lead time is 10~15 business days. Please check with the
sales team.
