    Adjustable Brass Cable Gripper Nickel Plating And Moveable Jointed Foot

    Ask Lasest Price
    Brand Name : YW
    Model Number : YW-86120
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000pcs/month
    Delivery Time : 10-15 Work Days
    • Product Details
    • Company Profile

    Adjustable Brass Cable Gripper Nickel Plating And Moveable Jointed Foot


    Adjustable Brass Cable Grippers Nickel Plating With Moveable Jointed Foot


    Brass Cable Grippers are unique, self-locking, completely adjustable devices,

    designed to securely lock onto a large range of 7×7 and 7×19 stranded aircraft cables.

    The cable grippers slide up and down the cable for the vertical height adjustment,all tool-free!

    They self lock on the cable and offer the perfect solution for the suspension of:

    Lighting Products,Signs,Dispalys, Artwork, Graphics, shelving and many other items,

    Radically reducing installation time and eliminating human error.

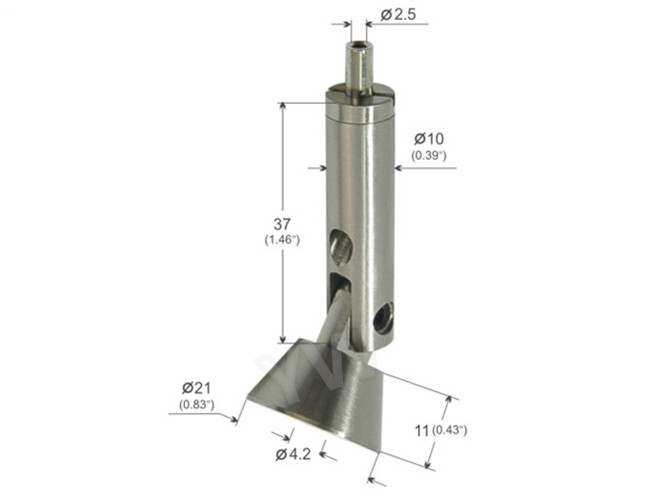

    The gripper size is Ø10*37mm,with a Ø21*11mm jointed foot,which is moveable.

    It is suited to applications with diameter wires 1.0~2.0mm.

    Other sizes and styles can be supplied as well,

    Contact us for your requirements,or send us your drawing for OEM.


    This brass cable gripper is removeable with a swivel jointed foot,

    It can be plated in Nickel,Chrome finishing color,

    As well as Black and White finish upon customer requirements.


    Description


    1. Item NameBrass Cable Grippers with 180 degree swivel foot
    2. MaterialBrass
    3. SizeΦ10*37mm / Customized
    4. Plunger DiameterΦ2.5mm
    5. For use with CableØ1.0~Ø2.0mm
    6. Finishing ColorChrome/Nickel,or Customized
    7. Application

    Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures

    8. Safe Working Load40KG,depends on the cable diamter work with(for reference only)
    9. Advantages

    1.The aircraft cable grippers offer a secure and elegant solution

    for any fine art installation,as well as Lighting Products,

    Signs,Dispalys, Graphics and many other items;

    2. Radically reducing installation time and eliminating human error;

    3. Easy to adjust cable length,easy to release.

    4. Low cost and competitively priced for use in industrial and architectural lighting applications;

    5. Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures;

    6. Supplied as Gripper Only or Gripper with Cables in different length.


    How It Works


    Aircraft Cable Grippers are sophisticated in design but simple to use:

    Insert the cable into the plunger and slide the gripper to the desired position.

    Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip

    and move the gripper to a new position. Release the plunger to lock.


    The 3--ball gripping mechanism is spring-loaded and allows the gripper to move

    freely up the cable. It cannot move down unless the plunger is depressed.


    While there is any weight at all on the gripper, the plunger cannot be depressed.

    An optional “safety nut” or “safety cap” can be added to completely lock the mechanism

    in both directions. The greater the weight, the stronger it grips.
