    Hanging System Precision Aircraft Cable Grippers / Adjustable Cable Grippers

    Ask Lasest Price
    Brand Name : YW
    Model Number : YW-86094
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000pcs/month
    Delivery Time : 10-15 Work Days
    • Product Details
    • Company Profile

    Hanging System Precision Aircraft Cable Grippers / Adjustable Cable Grippers

    Brass Material Aircraft Cable Grippers Adjustable For Hanging System


    Grippers can be used in many mounting applications including but not limited

    to j-box, drop ceiling, masonry and unistrut projects. They can be repositioned

    without damaging the cable and no tools are necessary.

    Just push and slide it.One hand is sufficient : the grippers are installed wholly

    without tools and are infinitely adjustable.


    This cable gripper is made from nickel/Chrome plated copper(brass) and best

    suited to indoor applications with small diameter wires 1.2~1.5mm.

    Other sizes and styles can be supplied as well,

    Contact us for your requirements,or send us your drawing for OEM.


    We offers several grippers in different diameters and screw sizes,

    Which can be used in many mounting applications including but not limited to

    j-box, drop ceiling, masonry and unistrut projects.



    Description


    1. MaterialBrass

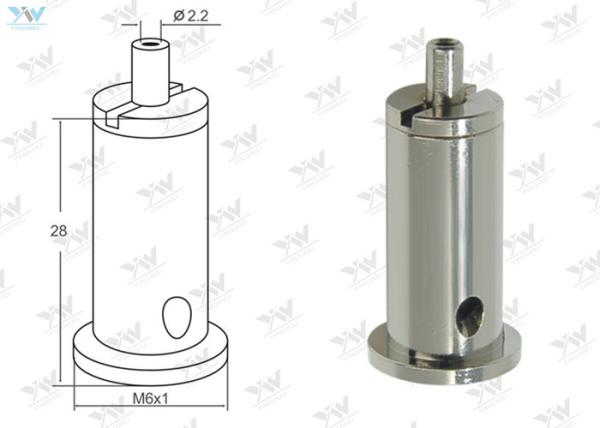

    2. SizeΦ12*28mm / Customized
    3. For use with CableØ1.2~Ø1.5mm
    4. Finishing Color

    Chrome / Black/ Customized

    5. Application

    It is perfect for Hanging Graphic Displays, Suspend Signage ,

    Lighting Systems , Suspended Fixtures and other objects.

    6. Safe Working Load30KG,depends on the cable diamter work with
    7.Advantage

    1. The Aircraft Cable Grippers help to provide the ideal suspension solution for sorts of different objects,such as heating,ventilation and air conditioning (HVAC),mechanical and electrical, lighting, acoustics and signage.


    2. They prove very easy to use, they have a unique clutch braking

    mechanism that grips within the gripper, thus creating a very easy, practical, simple system that can be used time-and-time again!


    3. What is the most important,they require no tools to adjust,


    up or down, down or up – as often as you like.


    Cable Gripper Design


    Within each cable gripper is a plunger that a cable slides through.

    There are three balls that surround the outside diameter of the cable

    as it passes through the gripper. When weight is applied to the gripper

    when mounted, the tension forces the balls to grab the cable in a pinching movement.

    In normal operation the more the tension, the more the gripping. Some grippers come with

    a safety nut that locks the movement in both directions eliminating the potential for a release

    if the plunger is accidentally depressed by an end user.


    FAQ


    Lead Time:
    Lead times will vary depending on the items and quantities on order.
    Normal lead time is 10~15 business days. Please check with the sales team.
