Adjustable LED Panel Suspension Kit Brass Material Gripper With Safety Lock

Description

1. Material: Brass+Stainless Steel Wire

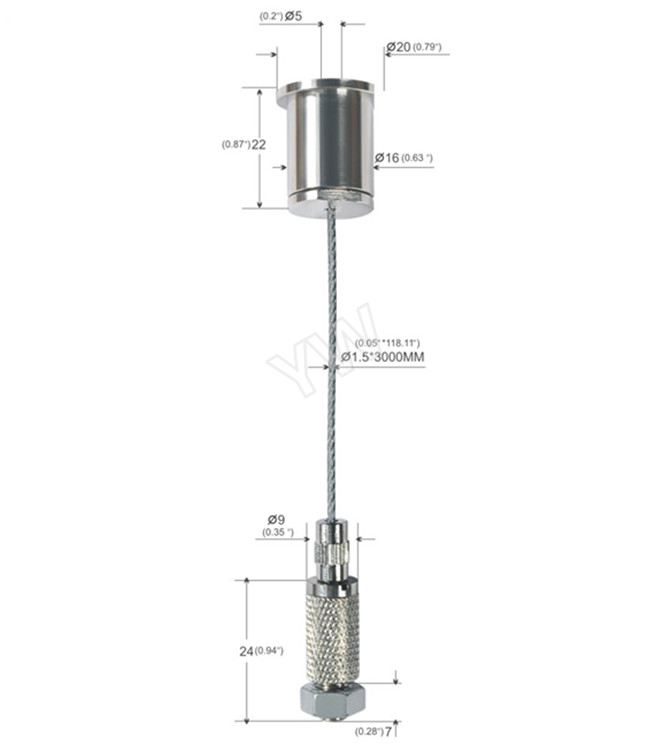

2. Size: Same as the drawing

3. Cable Diameter and Length: Ø1.2*1500mm;Or Customize

4. Finishing Color: Nickel;Or Customize

5. Application: These adjustable sign hanger kits can also be used in art installations,

in shop window displays,as well as in industrial applications such as suspending safety signs.

6. Safe Working Load: 30KG(Fore reference only)

7. Content:

One Nickel Cable Gripper,adjust the cable length;

One Ceiling attachment fixed to ceiling;

One 304 Stainless Steel wire with diecast end

This LED Panel suspension kit contains the comopents to suspend as following:

1. 304 Stainless Steel Wire;

Size:Ø1.5*3000mm

2. Cable Gripper made from brass material with Nickel plated;

Size:Ø9*24mm

With a safety lock and screw nut

3.Ceiling Attachment;

Material:Brass plated in Nickel

Size:Ø16*17mm

IMPORTANT: It is essential to check that the top ceiling fixings are strong enough to take the

weight of the items being displayed, while allowing for the tension in the cables.

The LED Panels can be suspended or surfaced mounted,

Stainless steel wire suspension kit for use with LED Panels,

and many other ultra slim LED panel lights allowing the panel to be hung from a ceiling.

Ideal for situations when recessed mounting is not possible, or for an ultra modern appearance.

This suspension kit is designed for the LED panels with dimensions

of 600mm x 600mm and 625mm x 625mm.

The 3000mm steel cable is adjustable in height and allows for

widest variety when suspending LED panels from ceilings.

Confused about how to select your hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall mounted, with applications

hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self gripping technology,

offer a secure and elegant solution for any fine art installation.

Suspension kits with adjustable gripper and Stainless Steel Wire,

Can be used to hang Linear Lights,LED Panels and many other products,

Offer the perfect solution for the suspension of the fixtures.

Stainless steel wire suspension kits for use with LED Panels and many other products,

Allow the panel to be hung from a ceiling. Ideal for situations when recessed mounting

is not possible, or for an ultra modern appearance.
