Cross Cable LED Panel Suspension Kit Mounting Accessory For Light Fixtures

This wire suspension kit has the Self-Gripping Ceiling fasteners,which are useful either a

s a ceiling fastener or a midway shelf holder. On the ceiling, the base plate allows for 3 screws,

and extra holding power.

One end of the suspension kit screws to the ceiling, the other side attached to the panel.

You can adjust the cable length by the gripper on both of the end,no tools needed,

Easy to adjust cable length. Easy to release.

Perfect for the Hanging Graphic Displays,as well as Suspend Signage,

Lighting Systems ,Suspended Fixtures and so on.

Description

1. Material:Brass+Stainless Steel Wire

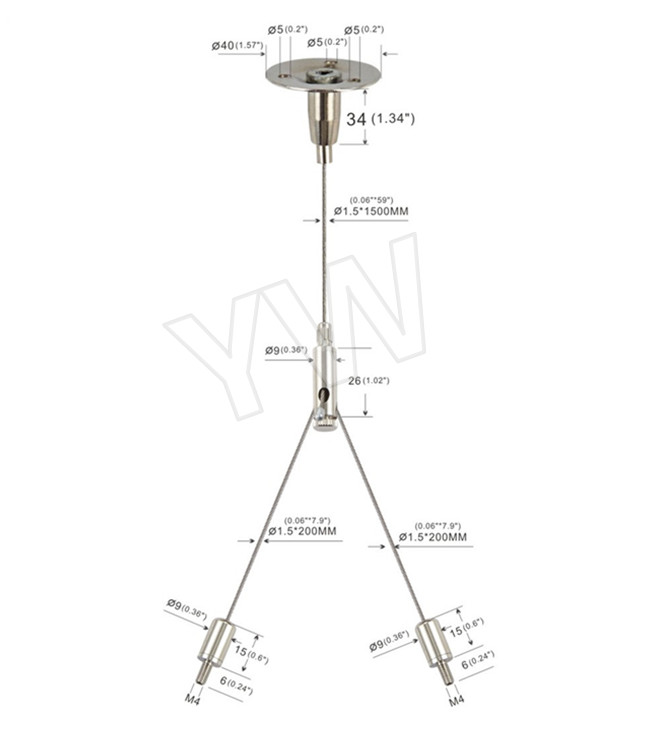

2. Size:Same as the drawing

3. Cable Diameter and Length:Ø1.5*1000mm;Or Customize

Y Cable:Ø1.5 * 200mm each side

4. Finishing Color:Nickel;Or Customize

5. Application:

Stainless steel wire suspension kits for use with LED Panels and many other products,

Allow the panel to be hung from a ceiling. Ideal for situations when recessed mounting

is not possible, or for an ultra modern appearance.

6. Safe Working Load:30KG(Fore reference only)

7. Content:

One Adjustbale cable gripper hook,adjust the cable length;

One 304 Stainless Steel wire with diecast end and loop end

This suspension kit for LED panels is one of 2 steel tensioners from the whole set that

allow us to hang panels 1~2 metres from the ceiling.

It can be used for 30x30cm panels, 60x60cm panels and 60x30cm panels.

*This suspension kit can de adjusted up to 2 metres.

*For 120x60cm and 120x30cm panels, adding 2 extra tensioners is recommended.

IMPORTANT: It is essential to check that the top ceiling fixings are strong enough to take the

weight of the items being displayed, while allowing for the tension in the cables.

If you have a project that involves unusually sloped, curved or high ceilings, our aircraft

cable gripper system may be the solution for you. It is affordable, flexible and easy to install.

To find out more about this more solutions for your hanging system,

Please feel free to contact our sales team.

Confused about how to select your hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall mounted, with applications

hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self gripping technology,

offer a secure and elegant solution for any fine art installation.
