    Chrome Color Ceiling Cable Hanging System Brass Material Ceiling Base

    Ask Lasest Price
    Brand Name : YW
    Model Number : YW-86251
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000pcs/Month
    Delivery Time : 10-15 Work Days
    • Product Details
    • Company Profile

    Chrome Color Ceiling Cable Hanging System Brass Material Ceiling Base


    Chrome Color Ceiling Cable Hanging System , Brass Material Ceiling Base


    Attachments are used to fix the cables to ceilings, walls or floors.

    The ceiling attachment is two piece connector for use with cable hanging system.

    It is fixed to the ceiling,work with cable gripper and offer the perfect

    solution for the suspension system.


    If you have a project that involves unusually sloped, curved or high ceilings,

    This slope ceiling attachment may be the solution for you.

    It is affordable, flexible and easy to install.


    Description

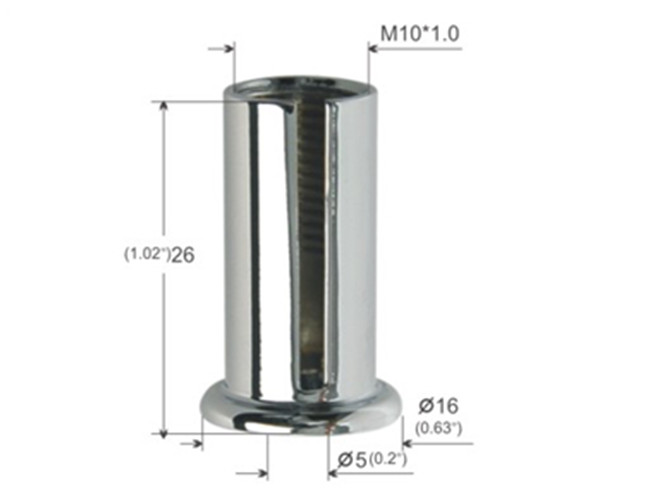

    1. Item NameChrome Ceiling Attachment Base
    2. MaterialBrass
    3. SizeΦ16*26mm / Customized
    4. Secrew HoleØ5mm
    5. Finishing ColorChrome / Customized
    6. Application

    One part of the suspension systems,used for applications where you have


    a hight ceiling, curved or slope ceiling or difficult installation.

    7. Safe Working Load30KG,depends on the cable diamter work with
    8. Details

    1. The base of a ceiling attachment,be fixed to the hard ceiling by screw,

    It is non-adjustable;

    2. Many Ceiling Attachment styles allow you to attach anything you want to hang,working with different cable gripper styles allow for limitless hanging installation options.

    3. Made of Brass material with plated,rustless;

    4. Compact design,easy taking and delivery.


    This attachment provides a firm anchor for the suspension system wire to fixed onto the ceiling.

    In the standard configuration, the attachment barrel is screwed onto the ceiling, and the suspension

    wire is threaded through the collar-locking nut, with the nipple at the end of the suspension wire locating

    into the collar, which is then screwed into the barrel.


    On a drywall or wood ceiling, simply use a anchor (drywall) or screw to install

    part one of the connector. Then put the griplock cable through the second

    part of the connector. The "stop" on the connector will stop the wire from falling out.

    Screw this second part of the connector to the first part already installed in the ceiling.

    Now you are ready to install the slider to the wire and hang your light fixtures.


    Confused about how to select your hanging system?


    1. Choose a Suspension Point
    Your system can be ceiling or wall mounted, with applications

    hanging freely or tensioned between two fixed points;


    2. Pick a Cable
    Our stainless steel aircraft cable comes in several diameters

    and lengths ranging from 1.0mm~3.0mm;


    3. Select a Gripper
    A range of designs and options, all with self gripping technology,

    offer a secure and elegant solution for any fine art installation.


    4. Select a Ceiling Attachment


    Many different types,for har ceiling and slop ceiling,

    To fix the cables to ceilings, walls or floors.
