Adjustable Lock Cable Grippers , Brass Material Key Ring Grippers

This ring gripper comes with a key ring with the diameter of 30mm.

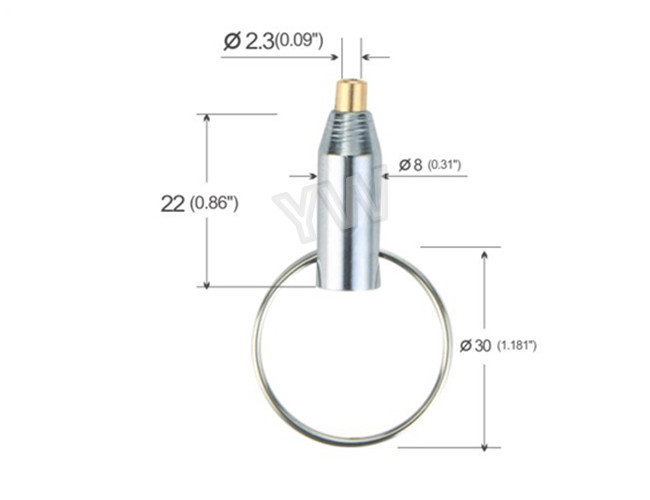

The gripper size is Φ8*22mm,it is mosty used in shops and stores for hanging kit.

Description

1. Item Name:Key Ring Cable Gripper

2. Material:Brass

3. Measurement:Φ8*22mm

4. Thread Size:Customize

5. Finishing Color:Chrome;Or Customize

6. Application:

Perfect for display applications such as retail display, architectural lighting/art and shelving.

adjustable cable systems can easily be fitted on site within seconds. Use for a huge range

of suspension applications from ducting, cabling, shopfitting & suspended systems.

7. Safe Working Load:10KG(For reference only)

This gripper is used for griping the return ends of wire rope. The offered gripper is also used

during lifting of goods and heavy items. The provided gripper is manufactured by our skilled

professionals by utilizing optimum grade brass at modern premises. Available in varied specifications,

this Brass Wire Rope Gripper can be bought at market leading prices from us.

A spring-loaded ball bearing mechanism allows the gripper to move freely along the cable whenever the plunger is depressed. When the plunger is released the gripper locks to the cable.

Choose the type of gripper from our catalogue that best fits your art or picture hanging needs.

We supplies the latest in suspension components including ceiling attachments, Locks,

and complete suspension systems.

Cable Grippers are sophisticated in design but simple to use to hang your pictures or fine art.

Here’s how it works:

Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.

To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.

The 3-ball gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed.

While there is any weight at all on the gripper, the plunger cannot be depressed. An optional “safety nut” or “safety cap” can be added to completely lock the mechanism in both directions. The Greater The Weight, The Stronger It Grips.

Materials & Finishes

Cable Grippers are made of nickel&Chrome-plated brass with a few exceptions. Internal mechanisms are comprised of brass and stainless steel. Grippers are also available in a black zinc finish,satin-chrome. Other finishes are available upon request. Some of the other items are made of anodized aluminum and come in several colors.
