Brass Material Lock Cable Grippers With Ring , Adjustable Rigging

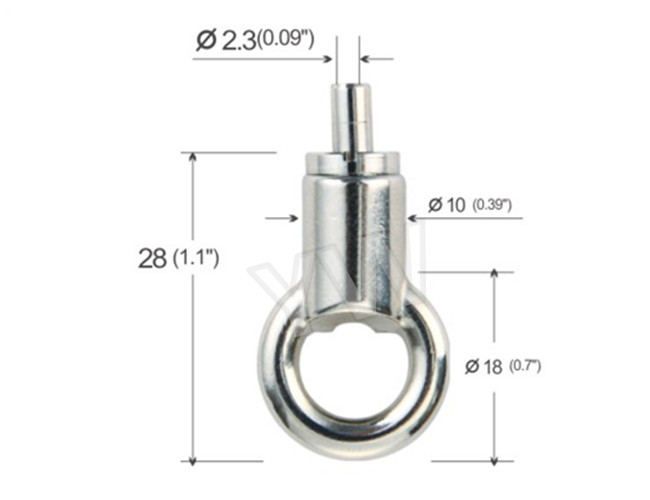

This is a Rigging - Adjustable Gripper with Ring and the ring diameter is 18mm.

The gripper diameter is Φ10 and the overall size is 18*28mm.

Description

1. Item Name: Rigging Gripper / Cable GRIPPER With Ring

2. Material: Brass

3. Measurement:Φ18*28mm

4. Thread Size: Customize

5. Finishing Color: Chrome;Or Customize

6. Application:

Perfect for display applications such as retail display, architectural lighting/art and shelving.

adjustable cable systems can easily be fitted on site within seconds. Use for a huge range

of suspension applications from ducting, cabling, shopfitting & suspended systems.

7. Safe Working Load:10KG(For reference only)

Cable Gripper Design

Within each cable gripper is a plunger that a cable slides through. There are three balls that surround

the outside diameter of the cable as it passes through the gripper. When weight is applied to the gripper when mounted, the tension forces the balls to grab the cable in a pinching movement. In normal operation the more the tension, the more the gripping. Some grippers come with a safety nut that locks the movement in both directions eliminating the potential for a release if the plunger is accidentally

depressed by an end user.

How It Works

Aircraft Cable Grippers are sophisticated in design but simple to use:

Insert the cable into the plunger and slide the gripper to the desired position.

Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip

and move the gripper to a new position. Release the plunger to lock.

The 3--ball gripping mechanism is spring-loaded and allows the gripper to move

freely up the cable. It cannot move down unless the plunger is depressed.

While there is any weight at all on the gripper, the plunger cannot be depressed.

An optional “safety nut” or “safety cap” can be added to completely lock the mechanism

in both directions. The greater the weight, the stronger it grips.

The cable grippers slide up and down the cable for the vertical height adjustment,all tool-free!

They self lock on the cable and offer the perfect solution for the suspension of:

Lighting Products,Signs,Dispalys, Artwork, Graphics, shelving and many other items,

Radically reducing installation time and eliminating human error.

You’ll find the most common models of our cable blockers in our catalogue.

Our sales are happy to help you finding the right device for your application.

Adjustable Cable Grippers prove very easy to use, they have a unique clutch braking

mechanism that grips within the gripper, thus creating a very easy, practical, simple system

that can be used time-and-time again!
