Security Cap Lock Cable Grippers , Brass Material Shelving Support
This is a adjustable cable gripper with Key flange at bottom,
It is to adjust the height of a fixture without utilizing tools,
For use with 1.0mm~1.2mm 7×7 or 7×19 aircraft cable only.
It is made from nickel plated brass and features a safety lock to
provide extra security.
Can be plated in Nickel,Chrome finishing color,
As well as Black and White finish upon customer requirements.
Cable exits out the side of gripper, commonly used as Shelving
Support,

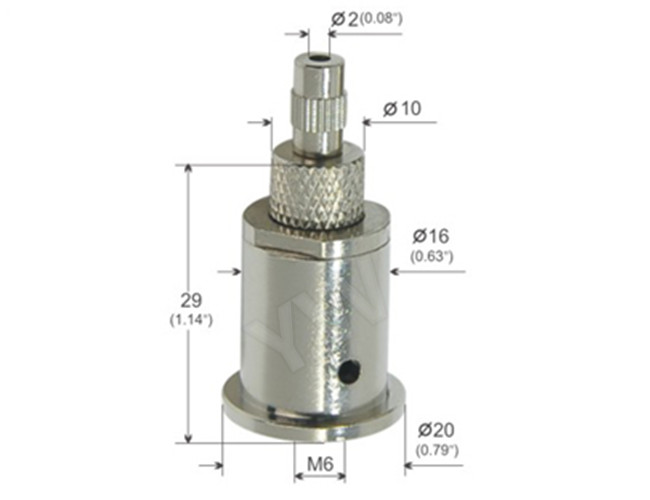

The overall size of the product is Φ16mm*29mm,and can be customized
too.
It can be repositioned without damaging the cable and no tools are
necessary.
Just unscrew the head, push and slide it.One hand is sufficient
-the grippers are
installed wholly without tools and are infinitely adjustable.
Description
| 1. Material | Brass |
| 2. Size | Φ16*29mm / Customized |
| 3. For use with Cable | Ø1.0~Ø1.5mm |
| 4. Finishing Color | Chrome / Nickel / Customized |
5. Application | The cable grippers are suited for a wide variety of applications, Such as Lighting Products,Signs,Dispalys, Artwork, Graphics and
many other items,and offer the perfect solution for the suspending
system. Arguably the finest way to suspend fixtures available!
|
| 6. Safe Working Load | 40KG,depends on the cable diamter work with |
| 7. Advantages | 1. The fastest locking device available for quick and easy
suspension, Supplied in ready-to-use,allows quick installation and instant
adjustment;
2. Tool Free:Setting and Adjustable without utilizing tools;
3. Self-Locking:User Friendly and dismountable;
4. Perfect for Suspend Signage + Lighting Systems + Suspended
Fixtures;
5. Compact design,easy taking and delivery. |
How It Works
Aircraft Cable Grippers are sophisticated in design but simple to
use:
Insert the cable into the plunger and slide the gripper to the
desired position.
Where it stops it locks.To re-adjust, simply depress the plunger
with your fingertip
and move the gripper to a new position. Release the plunger to
lock.
The 3--ball gripping mechanism is spring-loaded and allows the
gripper to move
freely up the cable. It cannot move down unless the plunger is
depressed.
While there is any weight at all on the gripper, the plunger cannot
be depressed.
An optional “safety nut” or “safety cap” can be added to completely
lock the mechanism
in both directions. The greater the weight, the stronger it grips.
