Hook End Cable Suspension Kits Adjustable For Heavy Duty Lighting Suspending

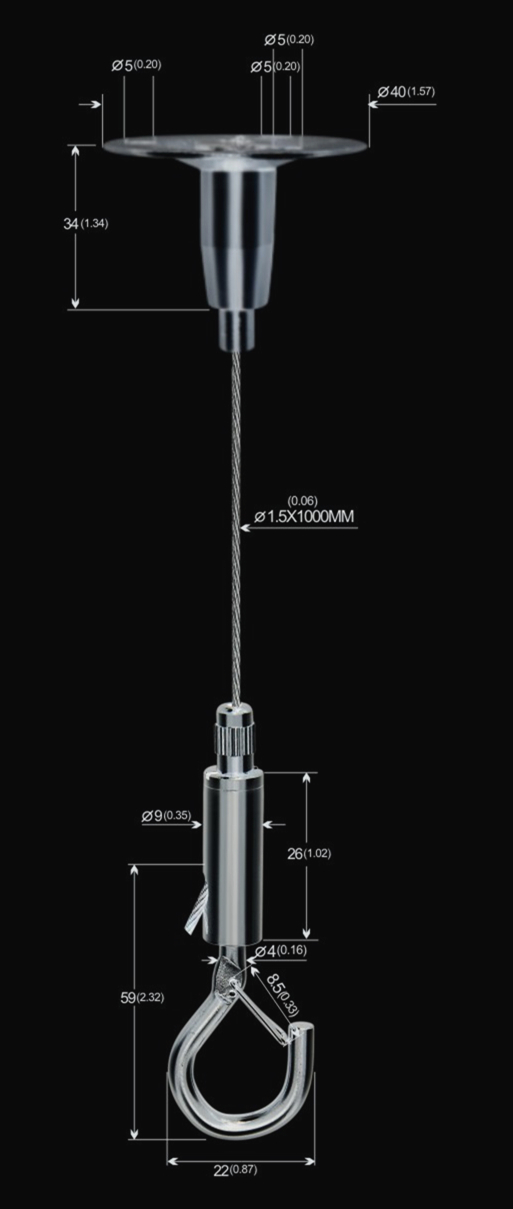

Suspension Kit YW-86441 DATA SHEET

Ceiling Attachment
Material: Brass Gripper+Steel Plate in Nickel finishing color
Size: Φ10*34MM

Cable Gripper With Security at top
Material: Brass plated in Nickel
Size: Φ9*26MM

304 Stainless Steel Wire:
Size:Φ1.5*1000MM

WARNINGS:

*Not suitable for outdoor use;
*We recommend that a minumum of two suspensions
are used per suspended object;
*Maximum Load Capacity at vertical:30KG;
*The ceiling attachment must be installed by a qualified
fitter,into a reliable substrate to achieve the working load;
*It is essential to remove or support the load before any adjustment is made;
*Ensure the steel wire clearly exits the gripper.

Description

Confused about how to select your art hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall mounted, with applications

hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self gripping technology,

offer a secure and elegant solution for any fine art installation.

Adjustable cables or fittings which provide for fine height adjustment are an essential feature of

picture hanging systems or any poster hanging kit. Signs must be displayed dead level and poster hanging arrays must be perfectly aligned. An adjustable hook at the bottom of the wire or a cable

holder incorporating a clutch mechanism mounted on the ceiling is a vital element of any hanging system.

Jonwin Limited(Yingwei Lighting Accessory Co.,Ltd.) is a manufacturer that specialized in producing Hardware and Accessory for Lighting, Hanging System for Acoustic Panels, and Billboard.

Our products range includes Cable Grippers,Ceiling Attachments,Hooks,Standoff,Steel Wire,Swivels,Rocker Arm and suspension kits.

The factory is located in Dongguan,Guangdong,China,with 2,500 Square Meters production area and advanced manufacturing equipments, including CNC high precision automatic lathes, Table Lathes, Grinder and Polishing Machines, Automatic Polishers and Spray Equipments, as well as Die Casting Machine and Testing Machine.

With the experience of manufacture and sales for more than 10 years, Yingwei is growing up steadily and rapidly.

Our well-equipped facilities, excellent quality control, on-time delivery and good after sales service enable us to guarantee total customer satisfaction and expand the global sales network.

We are currently exporting our products mainly to USA,Canada,Japan,Russia,UK,France,Italy,Germany,Finland,Spain,Poland and other European Area.

With the growing demand from end users for reduced installation cost and increased flexibility, suspension kit and hanging system is becoming more and more important.

Cooperate with Yingwei, make the installation easy and flexible!
