Snap Hook Cable Hanging System Made Of Brass And Stainless Steel Wire Material For Lighting Hanging

Specification:

Description

This snap hook cable hanging system usually uses for led lights. It also can it for display in a shop, museum, or gallery.

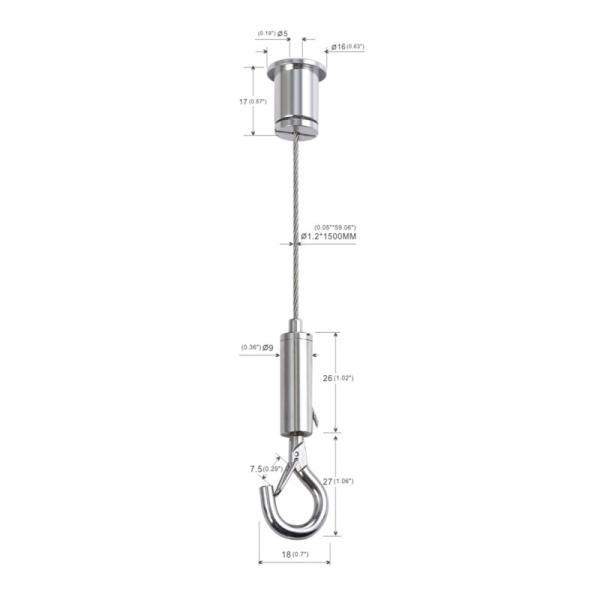

It consisted of three main parts: Ceiling attachments, Hanging cable(stainless steel wire rope), and hook cable grippers.

The ceiling attachments usually use the anchor screw and self-tapping screw to fix it on the ceiling.

The steel wire cable is made of 304 or 316 stainless steel or galvanized steel wire. All of them can be customized for length and color.

The snap hook cable gripper is used to fix and adjust the position of the cable. Depress the plunger of the cable gripper and insert the cable through, then release the plunger, and the cable will be locked in. we can use this way to find the correct position for the cable. The snap hook for hanging objects prevented them to slipped out from the hook

This suspension kit is very easy to install without many tools.

Attention:

1. The ceiling fixing must be installed correctly and by a qualified fitter into a reliable material to achieve the working load

2. Make sure to use a reliable and secure fixing for the object being suspended

3. Not to be used outside

4. Make sure the wire has no defects before use. Use only for static loads

5. A minimum of two suspensions are recommended per item being suspended

6. Always remove or support the load before making any adjustments

7. Supplied in ready-to-use kits

8. Available with a range of connector types and thread sizes

9. Extensive ceiling fixing options available to suit most substrates

Advantage

Suspension kit for slim frame LED edge light panels.

Easy installation that does not require a professional.

Secure the lock that screws into the ceiling while the other screws into the pre-made holes on the side of the edge light panel.

Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important

Confused about how to select your art hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall-mounted, with applications hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self-gripping technology, offer a secure and elegant solution for any fine art installation.

The Self-Gripping Sign and Panel Support Set includes both upper and lower self-gripping supports that make adjusting the height of your sign or panel quick and simple.

The system is highly secure because the set screw of the lower support goes directly through your sign or panel and then is secured with a nut.

Application

Lighting, Machinery, Medical, Security, Sporting Goods, Toys, Window, Lawn & garden. When designing a cable assembly, a number of factors need to be considered such as workload, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter, the greater the workload capacity and the less flexible it will be.

Shipping & Packing:

1. Air or Express shipping of Dual cable gripper:

We have our own Shipping forwarder who can deal with air shipping and international express shipping; such as DHL, UPS, FedEx, TNT, etc

Normally choose this when the quantities are small and the cargo is not very heavy.

2. Sea shipping of Dual cable gripper:

For large and heavy items, We can support delivery via sea shipping.

Jonwin Limited(Yingwei Lighting Accessory Co.,Ltd.) is a manufacturer that specialized in producing Hardware and Accessory for Lighting, Hanging System for Acoustic Panels, and Billboard.

Our products range includes Cable Grippers,Ceiling Attachments,Hooks,Standoff,Steel Wire,Swivels,Rocker Arm and suspension kits.

The factory is located in Dongguan,Guangdong,China,with 2,500 Square Meters production area and advanced manufacturing equipments, including CNC high precision automatic lathes, Table Lathes, Grinder and Polishing Machines, Automatic Polishers and Spray Equipments, as well as Die Casting Machine and Testing Machine.

With the experience of manufacture and sales for more than 10 years, Yingwei is growing up steadily and rapidly.

Our well-equipped facilities, excellent quality control, on-time delivery and good after sales service enable us to guarantee total customer satisfaction and expand the global sales network.

We are currently exporting our products mainly to USA,Canada,Japan,Russia,UK,France,Italy,Germany,Finland,Spain,Poland and other European Area.

With the growing demand from end users for reduced installation cost and increased flexibility, suspension kit and hanging system is becoming more and more important.

Cooperate with Yingwei, make the installation easy and flexible!
