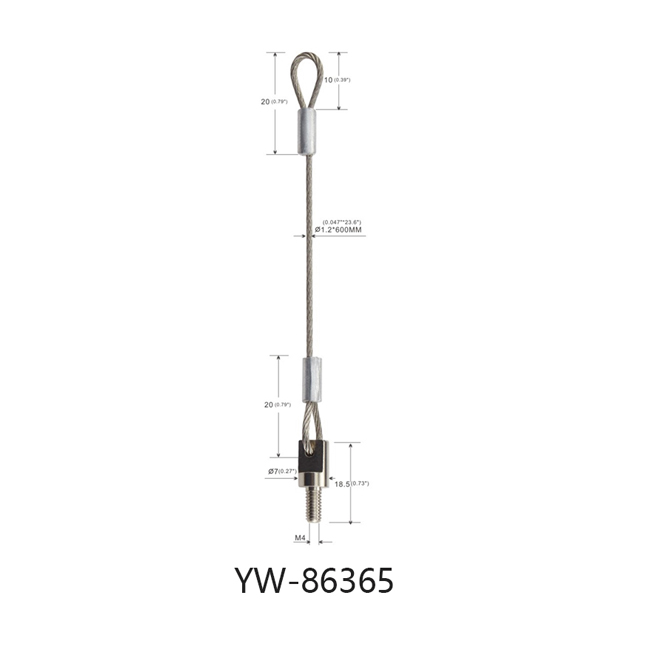

Stainless Steel Wire Rope Assemblies With Loop And Loop Screw
Accessory YW86365
Description:
- Wire rope assemblies are completed cable systems that involve the
cable or cables as well as any fittings in the form of additional
hardware or rope termination techniques.
- Wire ropes are used in a range of industries such as mining, oil
rigging, bridge construction, marine, aerospace, transportation,
and material handling among others that require various heavy-duty
lifting applications.
- Wire assemblies are also useful in motion control and machine
automation applications for not only lifting but pulling and
support as well. Wire rope assemblies allow for the incorporation
of wire cables into machinery or other equipment for use improving
connectivity and versatility and to prevent damage, such as
fraying, to the rope mechanisms.
Specification:
| Material | Stainless steel | Type | Hook |
| MOQ | 2000 PCS | Construction | 1x7;7X7;1x19 etc |
| Wire Diameter | ∅1.2mm | Carton Size | 35*25*18cm |
| Wire Length | Customized | Lead Time | 8-15 workdays |
| Break load | 15kg | Payment Terms | T/T,Western Union,Paypal |
Features:
- Wires. At the most basic level is the wire itself. The individual
wires on their own do not amount to much in terms of capacity, but
taken as a whole can distribute weight in an incredibly efficient
manner.
- Strands. The strands of a wire rope are created by laying the wires
helically around the wire rope’s core. Strands are wrapped
incredibly tight for maximum strength and cohesion.
- Core. At the center of the wire rope is a core, which provides
proper support for the strands. When it comes to the core, there
are three main options:
Independent Wire Rope Core (IWRC)
Wire Strand Core (WSC) — Both this core and IWRC are sometimes
referred to as steel wire core or steel center.
Wire rope is in the cable family in terms of functionality. It is
used in countless applications, including construction,
fabrication, distribution, and more. Elite Sales works across
several industries and can help you make the best selection.
Wire Rope Ferrule:
The Seamless aluminum ferrules, type oval correspond to the
European standard (FSET) for turnback ferrule or ferrule secured
eye termination. The ferrules are produced from seamfree extrusions
which are extruded seamlessly over a mandrel and the aluminum
alloy. Our ferrules size from 1mm to 3mm all suit this Requirement.
The size above 3mm and below 60mm can be customized according to
your requirement.
Material and construction options:
Cable Material: galvanized steel or stainless-steel lanyards.
Cable Construction: typically these assemblies are made of 7 x 19
(most flexible), 7 x 7, or 1 x 19 (least flexible) cables
Flexibility comparison:
1*7 None Flexible
1*19 Very None Flexible
7*7 Flexible
7*19 Very Flexible
Application:
* Promotional displays (hanging of signs)
* Hardshell cases (lid restraint)
* Display cases (lid restraint, shelf support)
* Retail Security (security cable for electronics, clothes,
expensive manuals, etc.)
* HVAC Heating and cooling ductwork (support lanyards for ducts and
pipes)
* Material Handling (hanging support lanyards, pulley cables)
* Specialized vehicles (security stainless steel lanyards for
release pins, lid restraints)
* Lawn and garden equipment (security lanyards for release pins,
lid restraints)
* Seats (seat restraint lanyard)
About us:
We have numerous capabilities that allow us to meet your specific
needs and be the industry leader for custom cable assemblies.
* CNC Machining Capabilities—Yingwei has the capability to quickly
make custom component parts to meet a variety of customers’ needs.
* Tensile Testing—All tensile testing is done in-house at our
facility. Our quality department can provide a material cert with
the shipment if you need.
* Swaging—Yingwei’s manufacturing facility offers various size
swaging machines to meet your diameter requirements.
* Electric Cutting—Automatic fuse cutting enables Yingwei to
achieve precise length requirements while eliminating any frayed
ends.
