Brass Part Three Branch Outlet 15mm Dia Hanging Attachment Hardware
YW86269
Description:
1. Attachments are used to fix the cables to ceilings, walls, or
floors.
2. The ceiling attachment is a two-piece connector for use with a
cable hanging system.
3. It is fixed to the ceiling, works with a cable gripper, and
offers the perfect solution for the suspension system.
4. One part of the suspension systems, used for applications where
you have a high ceiling, curved or slope ceiling, or difficult installation.
5.Low cost and competitively priced for use in industrial and
architectural lighting applications;
6. Three legs-Fit is designed for suspending lighting and containment
and offers three fixing points for balance. Leg lengths are
supplied at 150 mm 300 mm and 500 mm as standard. Available with a
variety of end fixings including Toggle and Snap Hook, the product
features a side wire exit.
Specification:

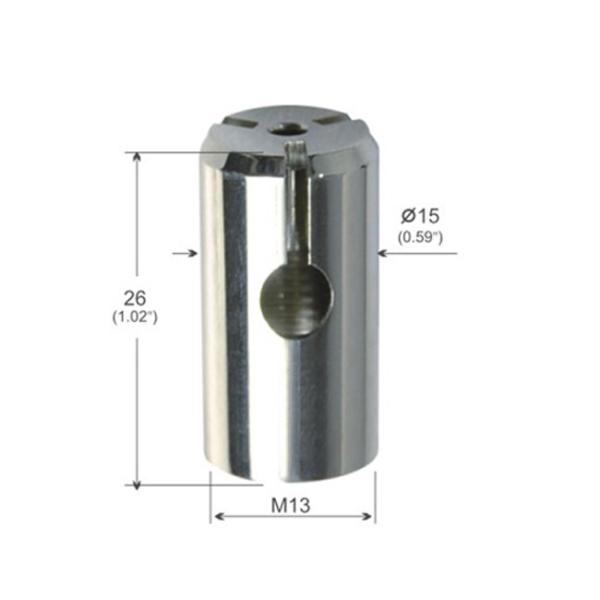

| Material | Brass | Type | Round |
| MOQ | 300 PCS | Brand Name | YW |
| Item | Ceiling Attachment | Carton Size | 35*25*18cm |
| Size | ∅*15mm/Customized | Lead Time | 8-15 workdays |
| Thread | M13 thread | Payment Terms | T/T, Western Union, Paypal |
Application:
1. On a drywall or wood ceiling, simply use an anchor (drywall) or
screw to install part one of the connector. Then put the Lock cable through the
second part of the connector. The "stop" on the connector will stop the
wire from falling out.
2. Screw this second part of the connector to the first part
already installed in the ceiling.
3. Now you are ready to install the slider to the wire and hang
your light fixtures.
4. These adjustable sign hanger kits can also be used in art
installations, in shop window displays as well as in industrial
applications such as suspending safety signs.
Feature:
- Cost-effective fitting
- Attractive nickel-plated finish
- Can be fitted easily on-site
- Strong cable fitting
The three legs hanger part is designed for architectural lighting
suspensions where aesthetics are important and offers simple
one-handed adjustment and a range of feet options to accommodate
many types of luminaires.
Easy to use
A.Insert the cable into the gripper. Always insert the cable
through the pin unless otherwise stated.
B.Adjust the gripper up. When you let go of the gripper it will
automatically lock itself on the cable.
C.Press the pin and adjust down. When you press the pin the lock
opens and the gripper slides freely up and down the cable. Release
the pin to lock the gripper again.
We provide a wide range of aircraft cable
Aircraft cable is available in galvanized steel and Stainless
Steel,
and is also offered in Stainless Steel Type 316.
Our aircraft cable mainly comes in 7x7 strand,
1x7 strand, 1 x19 strand, and 7x19 strand is available too if
required
All in galvanized steel or stainless steel.
Aircraft cable sizes range from 1.0mm to 3.0, with different
breaking strengths (tensile strengths).
Quality Control
As all manufacturers and installers know, suspending objects safely over people’s heads is their first and most critical
responsibility.
Safety is our number one concern. Each and every gripper is a precision-built machine.
Warm tip
The max load-bearing of the according to the cable, please don't
use it in the stuff of exceeding weight to avoid danger. If you
want to try, Please be careful.
