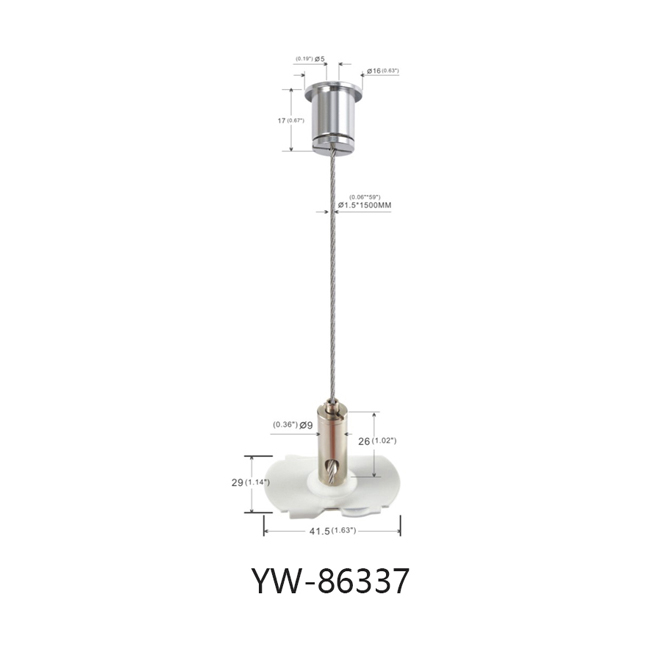

Nickel Pated Brass Wire Suspension Cable Kit With Adjustable
Gripper YW86337
Description:
We Have Wire Suspension Kits that allow you to fit our high-quality
LED panels to any flat surface, ceiling, or wall. Give Yourself The
Benefits of LED Panel lighting Anywhere. A simple solution which
complements our panels and allows you to make a very neat and clean
lighting solution.
The kit is supplied together with a 1m stop-end cable plus a
suspension hook whose height can be set using the inbuilt
self-locking clutch mechanism. Simply push the button to release
the grip while fine adjustments are made.
Adjusting the position of the hook is as simple as pressing down
the button on the top of the hook, then sliding it into the desired
location and releasing the button.
Specification:
1.Main Wire Diameter | ∅1.5mm(0.06”) |
| 2.Construction | 1*7,7X7,1*19,7*19 etc |
| 3.Material | Stainless steel |
| 4.MOQ | 300pcs |
| 5.Length | 1500mm, as the requirement |
| 6.Type | Single leg |
| 7.Surface treatment | Chrome, Nickel, Black, White, and Silver |
| 8.End parts of fittings | Eyelets terminals
Screws
Clips
Hooks
All kinds of grippers
Ceiling attachment
locking screws
A large selection of end fittings, including eye bolts, links,
springs,
hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped
eye,
handles, etc |
| 9.Lead time | 10-15 workdays if there were enough material in stock |
| 10.Sample | Free sample available if all of the dimensions same as our existing
one |
Cable:
Our 7x7 and 7x19 construction, stainless steel, and galvanized
aircraft cable are primarily used for thelanyards. If required,
lanyards can also be manufactured using PVC or nylon-jacketed
cable, which are available in a diverse collection of jacket colors
including clear.
Advantage:
Quick
Up to 6 times faster than traditional suspension systems.
Safe
Can be pre-installed to channel using pre-fitted washer/nut or
using retention clip reducing time working at height.
Easy
The integral ergonomically designed release button allows for
simple adjustment.
Versatile
Variety of foot attachments available to suit applications.
Secure
The button acts as a locking screw and the indicator clearly
highlights the wire is locked in position for ultimate security.
Breaking Strength Safety Factor
In determining the working load of a cable or wire rope, the direct
stress plus the shock in bending loads must be considered. To
assure long life, a reasonable safety factor should be applied to
the working load. Standard industry practice is a 5:1 safety factor
for many applications. Higher safety factors are used under certain
conditions such as extreme shock loads, aircraft control cables,
etc.
The fatigue life of the cable or wire rope will be greatly enhanced
with properly designed pulleys. The root, or pulley tread diameter,
is critical to the life of the cable.
Our Company:
1. Experience
10 years of experience specializing in manufacturing wire cable
assembly and elastic ropes.
Our products have a wide range of applications inside the lighting
fixture, flowerpot, billboards, vehicles such as brake, gear,
window, and another hanging system.
2. High-quality direct manufacture
Our factory has advanced manufacturing equipment, including CNC
high precision automatic lathes, Grinder and Polishing Machines,
Automatic, Polishers, and ISO manage.
3.OEM
OEM, custom-made available, free samples available, we supply our
customer with custom
designed fittings and terminals as per their specification.
4.High-efficient service
Our sales representatives are dedicated to guiding our clients
through the entire assembly selection process.
We are willing and able to go the extra time to extend our clients'
expectations.
FAQ
How To Purchase:
We accept emailed purchase orders (POs).
All of your inquiries will be replied to by email within 24 hours.
Sample Charge:
Yingwei provides a limited amount of product samples, usually free
of charge;
The buyer is to provide a shipping account number for freight
collected.
NOTE: Multiple samples may be not available.
