Electroplating Matt Black Ceiling Light Cable Suspension Systems
YW86344
Description
Grippers
Compact-designed grippers allow swift installation and instant
adjustment without damaging the wire.
We have many different gripper models to choose from, depending on
your area of usage and weight capacities.
Wires
Stainless steel and zinc-plated wires are available in various
dimensions and lengths.
Wires with loops or nipples can be obtained after consultation with
our technicians.
Attachments
Attachments are used to fix the wire to ceilings, walls or floors.
Ensure that you use suitable screws and dowels for the materials
when installing.

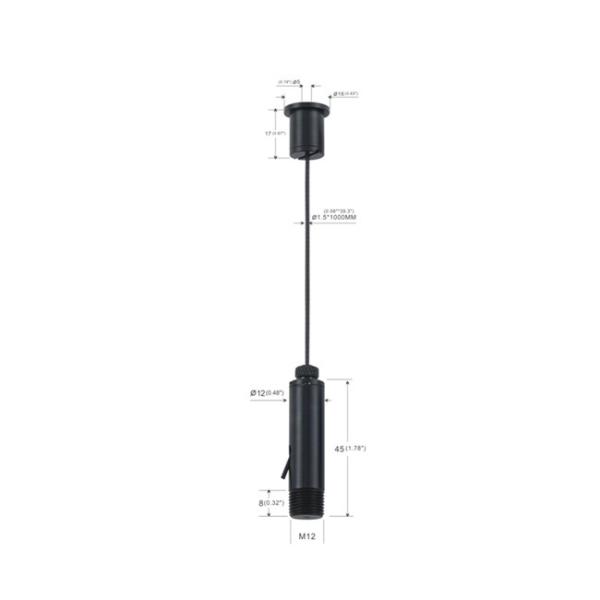

Specification:
1.Main Wire Diameter | ∅1.5mm(0.06”) |
| 2.Construction | 1*7,7X7,1*19,7*19 etc |
| 3.Material | Stainless steel / Copper |
| 4.MOQ | 500pcs |
| 5.Length | 1000mm, as the requirement |
| 6.Type | Single leg |
| 7.Surface treatment | Chrome, Nickel, Black, White, and Silver |
| 8.End parts of fittings | Eyelets terminals
Screws
Clips
Hooks
All kinds of grippers
Ceiling attachment
locking screws
A large selection of end fittings, including eye bolts, links,
springs,
hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped
eye,
handles, etc |
| 9.Lead time | 10-15 workdays if there were enough material in stock |
| 10.Sample | Free sample available if all of the dimensions same as our existing
one |
What is the difference between 1x19, 7x7, and 7x19 configurations?
* The 1x19 cable is slightly stronger than the other cables but is
the least flexible. It is also the nicest looking cable due to the
fewer strands of wire that make it up.
* The 7x7 cable is semi-flexible, has a lesser breaking load than
compared to the 1x19, but greater than 7x19.
* The 7x19 cable is the most flexible, which allows it to loop back
on itself without kinking. It has the lowest breaking load of 20kg.
* If you are using the wire for balustrading; in particular in
conjunction with fittings that require the use of a hydraulic
swage, either of the 3 wires wire will be fine; but if you are
using fittings that need the cable to wrap around a thimble, then
the more flexible 7x7 or 7x19 cable is a much easier option for
this purpose.
Advantage
Suspension kit for slim frame LED edge light panels.
Easy installation that does not require a professional.
Secure lock that screws into the ceiling while the other screws
into the premade holes on the side of the edge light panel.
Cable display systems are ideal for the home, museums, art
galleries, public buildings, corporate identity, or wherever visual
communication is important.
Application
Lighting, Machinery, Medical, Security, Sporting Goods, Toys,
Window, Lawn & garden. When designing a cable assembly, a number of
factors need to be considered such as workload, abrasion, cycle
life, and flexibility, environment, cost, safety .etc. the larger
the diameter, the greater the workload capacity and the less
flexible it will be.
Our Company
Yingwei specializes in suspension application design, and the company's
products are designed to reduce installation costs and increase
flexibility.
The company has advanced production equipment, high-precision CNC
automatic lathes to meet the high-volume production needs of
customers.
The materials used in all products are in line with EU ROHS
standards. The products are subjected to strict salt spray tests
and tensile tests at the factory to ensure the quality and safety
of the products.
FAQ
1. Can I have a sample order for lighting hardware fittings?
A: Yes, we welcome sample orders to test and check quality. Mixed
samples are acceptable.
2. How can I pay?
A: We accept T/T or Wire transfer, PayPal, Western Union.
3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
4.If received the wrong/damaged/bad quality products?
A: Please contact us immediately, we will reply in 1 working day and
provide a solution in 3 working days.
optional.
