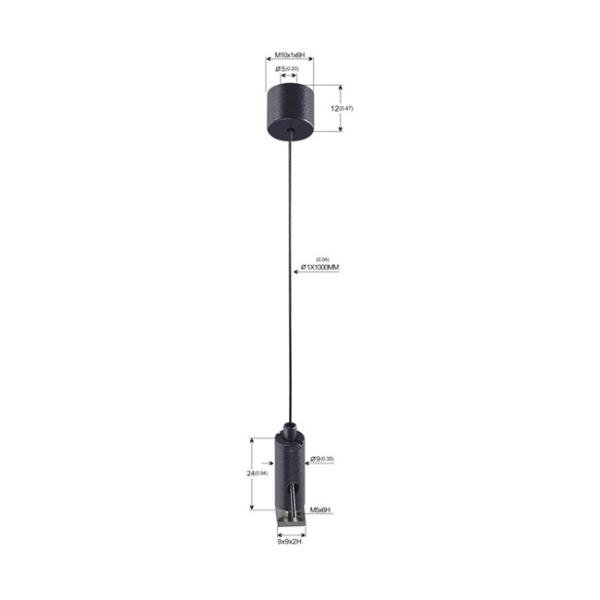

Brass Suspension Cable Kit For Led Linear Lighting Systems Painted
Black YW86472
Specification:
1.Main Wire Diameter | ∅1.0mm(0.04”) |
| 2.Construction | 1*7,7X7,1*19,7*19 etc |
| 3.Material | Stainless steel / Copper |
| 4.MOQ | 500pcs |
| 5.Length | 1000mm, as the requirement |
| 6.Type | Single leg |
| 7.Surface treatment | Chrome, Nickel, Black, White, and Silver |
| 8.End parts of fittings | Eyelets terminals
Screws
Clips
Hooks
All kinds of grippers
Ceiling attachment
locking screws
A large selection of end fittings, including eye bolts, links,
springs,
hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped
eye,
handles, etc |
| 9.Lead time | 10-15 workdays if there were enough material in stock |
| 10.Sample | Free sample available if all of the dimensions same as our existing
one |
Advantage
Suspension kit for slim frame LED edge light panels.
Easy installation that does not require a professional.
Secure lock that screws into the ceiling while the other screws
into the premade holes on the side of the edge light panel.
Cable display systems are ideal for the home, museums, art
galleries, public buildings, corporate identity, or wherever visual
communication is important.
Description
These elegant hanging kits suit substrates and are available with a
choice of ceiling fixings.
Painted black ceiling and panel fixings feature a self-locking
mechanism that saves time and effort when suspending, panels, and
graphics from a ceiling. A clutch release button makes leveling up
a breeze. The height is adjusted at the sign rather than at the
ceiling - much more convenient!
Attachments
Attachments are used to fix the wire to ceilings, walls, or floors.
Ensure that you use suitable screws and dowels for the materials
when installing.
Grippers
Compact-designed grippers allow swift installation and instant
adjustment without damaging the wire.
We have many different gripper models to choose from, depending on
your area of usage and weight capacities.
Wires
Stainless steel and zinc-plated wires are available in various
dimensions and lengths.
Wires with loops or nipples can be obtained after consultation with
our technicians.
What is the difference between 1x19, 7x7, and 7x19 configurations?
* The 1x19 cable is slightly stronger than the other cables but is
the least flexible. It is also the nicest looking cable due to the
fewer strands of wire that make it up.
* The 7x7 cable is semi-flexible, has a lesser breaking load than
compared to the 1x19, but greater than 7x19.
* If you are using the wire for balustrading; in particular in
conjunction with fittings that require the use of a hydraulic
swage, either of the 3 wires wire will be fine; but if you are
using fittings that need the cable to wrap around a thimble, then
the more flexible 7x7 or 7x19 cable is a much easier option for
this purpose.
Never
• Attempt to shorten, knot, or tie wire rope slings.
• Force, hammer, or wedge slings or their fittings into position.
• Lift on the point of the hook.
• Use wire rope slings in acidic conditions without consulting the
supplier.
• Use wire rope slings at temperatures above 100°C or below minus
40°C without consulting the supplier.
• Shock load wire rope slings.
Application
Lighting, Machinery, Medical, Security, Sporting Goods, Toys,
Window, Lawn & garden. When designing a cable assembly, a number of
factors need to be considered such as workload, abrasion, cycle
life, and flexibility, environment, cost, safety .etc. the larger
the diameter, the greater the workload capacity and the less
flexible it will be.
FAQ
1. Can I have a sample order for lighting hardware fittings?
A: Yes, we welcome sample orders to test and check quality. Mixed
samples are acceptable.
2. How can I pay?
A: We accept T/T or Wire transfer, PayPal, Western Union.
3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
